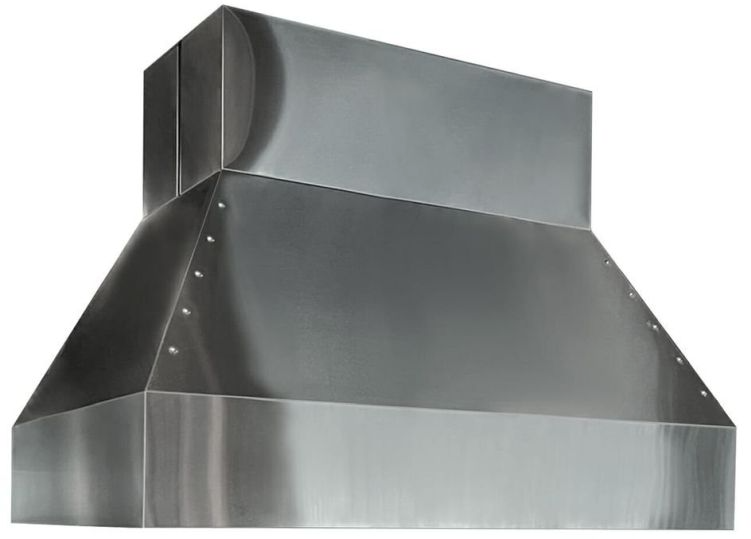

Trade-Wind® P7200 Series 48" Stainless Steel Outdoor Range Hood

Trade-Wind

Model #:

P7248ISL

Trade-Wind® P7200 Series 48" Stainless Steel Outdoor Range Hood-0
Trade-Wind® P7200 Series 48" Stainless Steel Outdoor Range Hood-1
Trade-Wind® P7200 Series 48" Stainless Steel Outdoor Range Hood-2
Trade-Wind® P7200 Series 48" Stainless Steel Outdoor Range Hood-3
Trade-Wind® P7200 Series 48" Stainless Steel Outdoor Range Hood-4

At a Glance

Product Dimensions 24"h x 48"w x 32"d

Available in 48” width. Pyramid BBQ hoods are 16" deep at top, 32" deep at bottom. Design of the stainless steel commercial baffle filters adds a professional image. Telescopic duct cover (2 piece) provided for adjustment up to 10' ceilings. Generously proportioned 32” depth of hood provides an exceptional capture area.Read More

$6,099.00

Get to know this product.

Product Overview

Product Overview

Lighting

Recessed controls and LED lights

Buttons and light glare hidden from the front

Two LED lights brighten cooking area (three on 48”,60”, and four on 72” model)

Enduring Quality

Commercial grade stainless steel (#304 grade) and galvanized steel construction

CFM and sound tested by Energy Systems Laboratory at Texas A&M University

Quiet Operation

Rubber-mounted motor & large, squirrel-cage blowers reduce sound and vibration

3-speed motor control reduces blower and air movement sound

Additional Features

Double bank of baffle filters allows for the largest active capture area in

outdoor hoods. Generously proportioned 32” depth of hood bottom, 15′′ depth at top, 24′′ high, provides an exceptional capture area.

Ease of Use

Cool touch knarled knobs for easy control

Installation

All 24” bodied hoods easily convert from vertical discharge to horizontal at job site

Useful Documents
Specification Sheet
Installation Instructions
Warranty
Specifications

General Specs

ColorStainless Steel
Color/Finish NameStainless Steel
Range Hood TypeIsland
Maximum CFM1200
Grease Filter TypeBaffle
Duct Size (in.)10
Range Hood FeaturesLight, Removable Grease Filter
Outdoor ApprovedYes
Appliance Fit Width (in.)48
Width (in.)48
Depth (in.)32
Height (in.)24
Product Weight (lbs.)160
CollectionP7200
SeriesP7200
Manufacturer Warranty3 Year Parts & Labor
ADA CompliantYes
Voltage120
Frequency60
Amp1.5

Specifications

ModelsModels
Hood StylePyramid: 16″ deep at top, 32″ deep at bottom Generously proportioned 32” depth of hood provides an exceptional capture area
CFMPowerful internal blowers deliver 1200 CFM (on 48") and 2300 CFM (on 60")
MaterialHeavy gauge commercial stainless steel (#304 grade with #4 brush finish) Dimmable 50 watt halogen lights
FiltersFour 12” by 14” baffle filters for enhanced performance Design of the stainless steel commercial baffle filters adds a professional image
Duct Cover Options:Telescopic duct cover (2 piece) provided for adjustment up to 10′ ceilings
